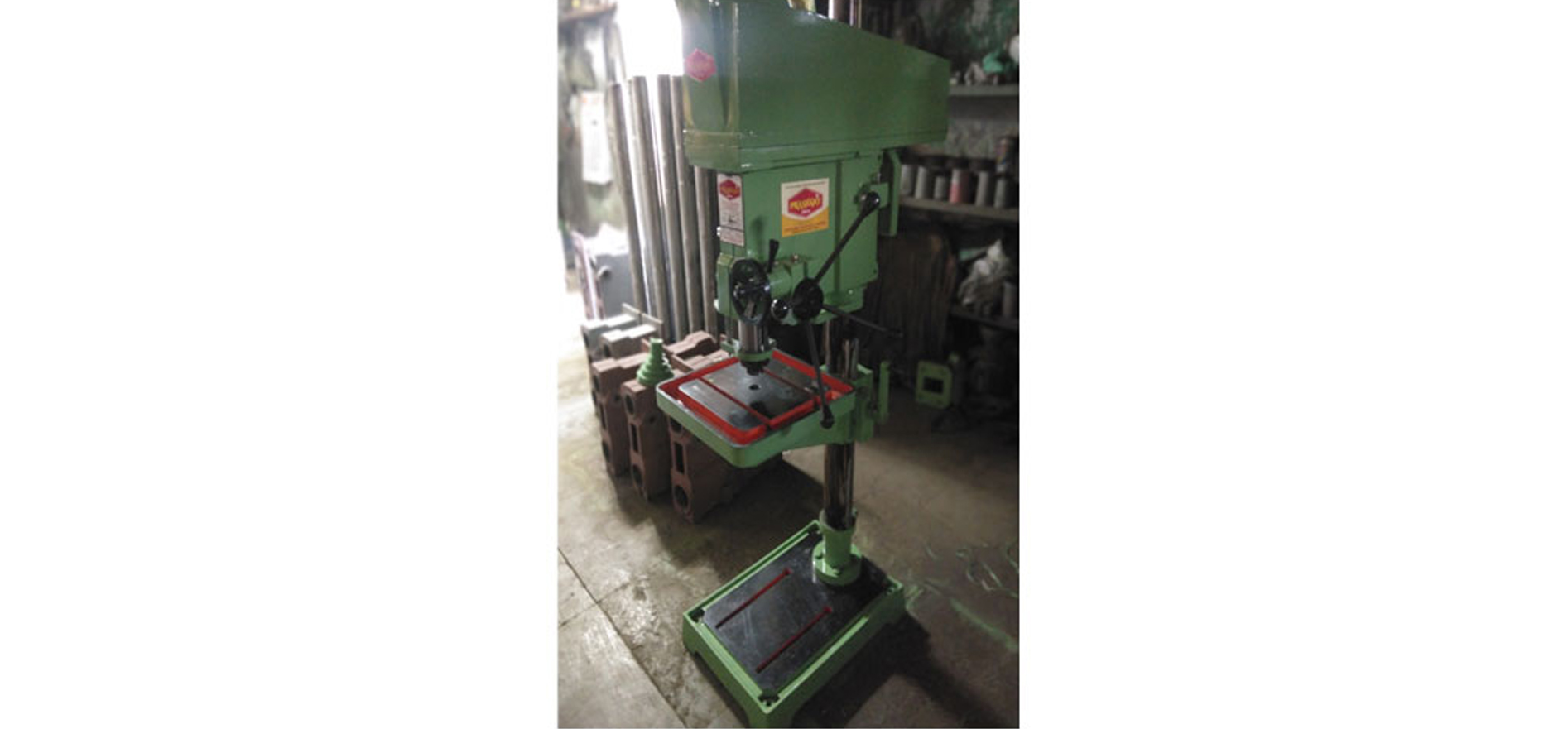

| SPECIFICATIONS |
CMW/25mm/3 |
| Drill Cap. In M.S. |
25 mm |
| Drill Cap.In C.I. |
32 mm |
| Tapping Cap. |
19 mm |
| Column Diameter |
90 mm |
| Ram Diameter |
72 mm |
| Spindle Traveling |
190.5 mm (7.5" ) |
| Centre Of Spindle To Column Face |
267 mm (10.5" ) |
| Taper Spindle |
M.T.3/M.T4 |
| Over All Height Of Machine |
1625 mm |
| Size Of Sqare Table |
380 mm (15"*15" ) |
| Size Of Round Table |
332 mm (17" ) |
| Size Of Machine Base |
584 mm*381mm (23'*15" ) |
| Maximum Distance Of Spindle To Base |
1015 mm 40" |
| No.Of Speed Range |
96*3200RPM |
| V-Belt Section |
B-51 |
| Electrical Motor |
1 H.P |
| Weight Of Machine Without Motor |
215 Kgs (Approx ) |
