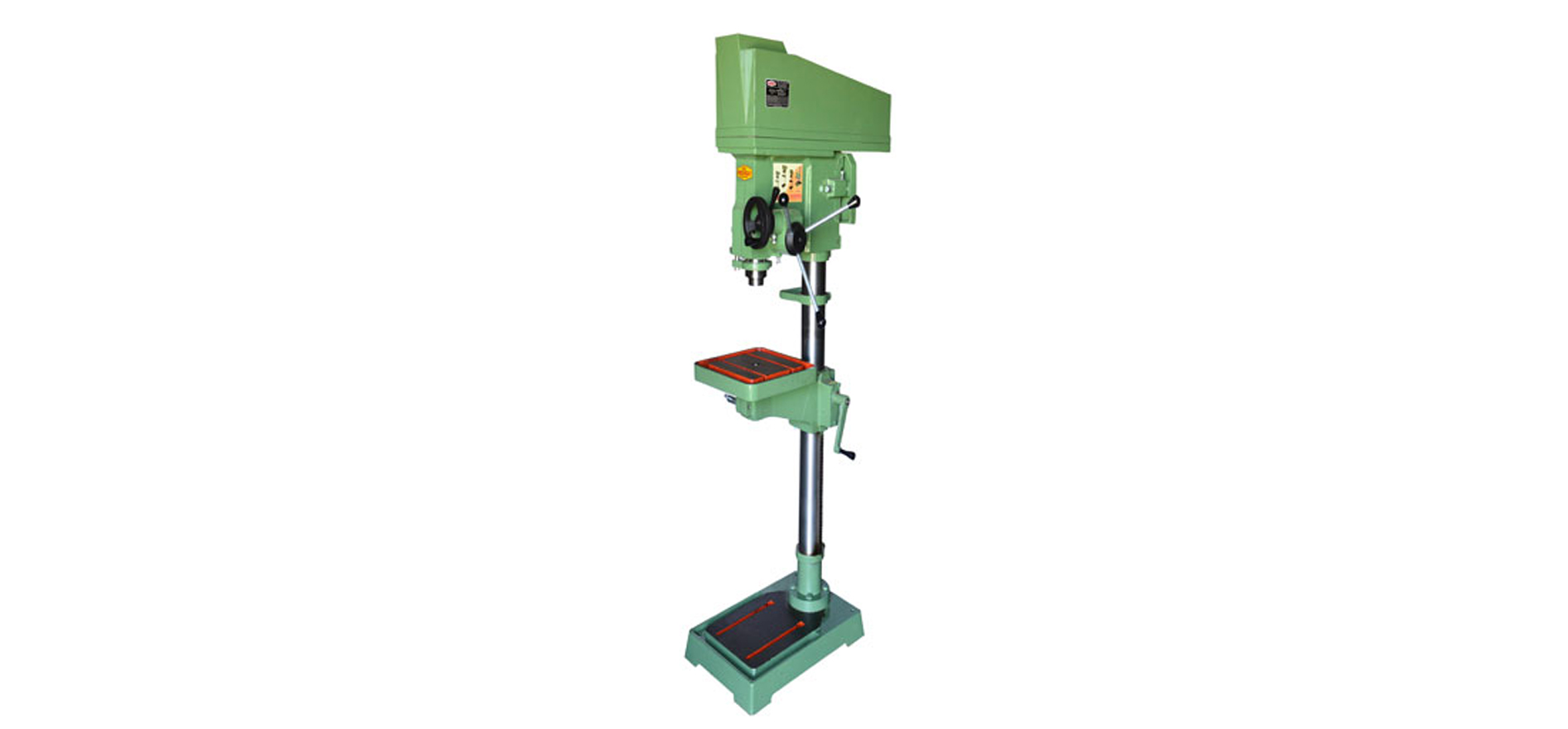

| SPECIFICATIONS |
CMW/25mm/1 |
| Drill Cap. In M.S. |
25mm |
| Drill Cap.In C.I. |
32 mm |
| Tapping Cap. |
20 mm |
| Column Diameter |
90 mm |
| Ram Diameter |
72 mm |
| Spindle Traveling |
152.4 mm |
| Centre Of Spindle To Column Face |
228.6 mm |
| Taper Spindle |
M.T.3/M.T.4 |
| Over All Height Of Machine |
1625 mm |
| Size Of Sqare Table |
380 mm (12.5'*12.5" ) |
| Size Of Round Table |
381 mm (15.5" ) |
| Size Of Machine Base |
558 mm*332mm(22"*17" ) |
| Maximum Distance Of Spindle To Base |
1015 mm (40" ) |
| No.Of Speed Range |
8 96*3200RPM |
| V-Belt Section |
B-48 |
| Electrical Motor |
1 H.P |
| Weight Of Machine Without Motor |
190 Kgs (Approx ) |
