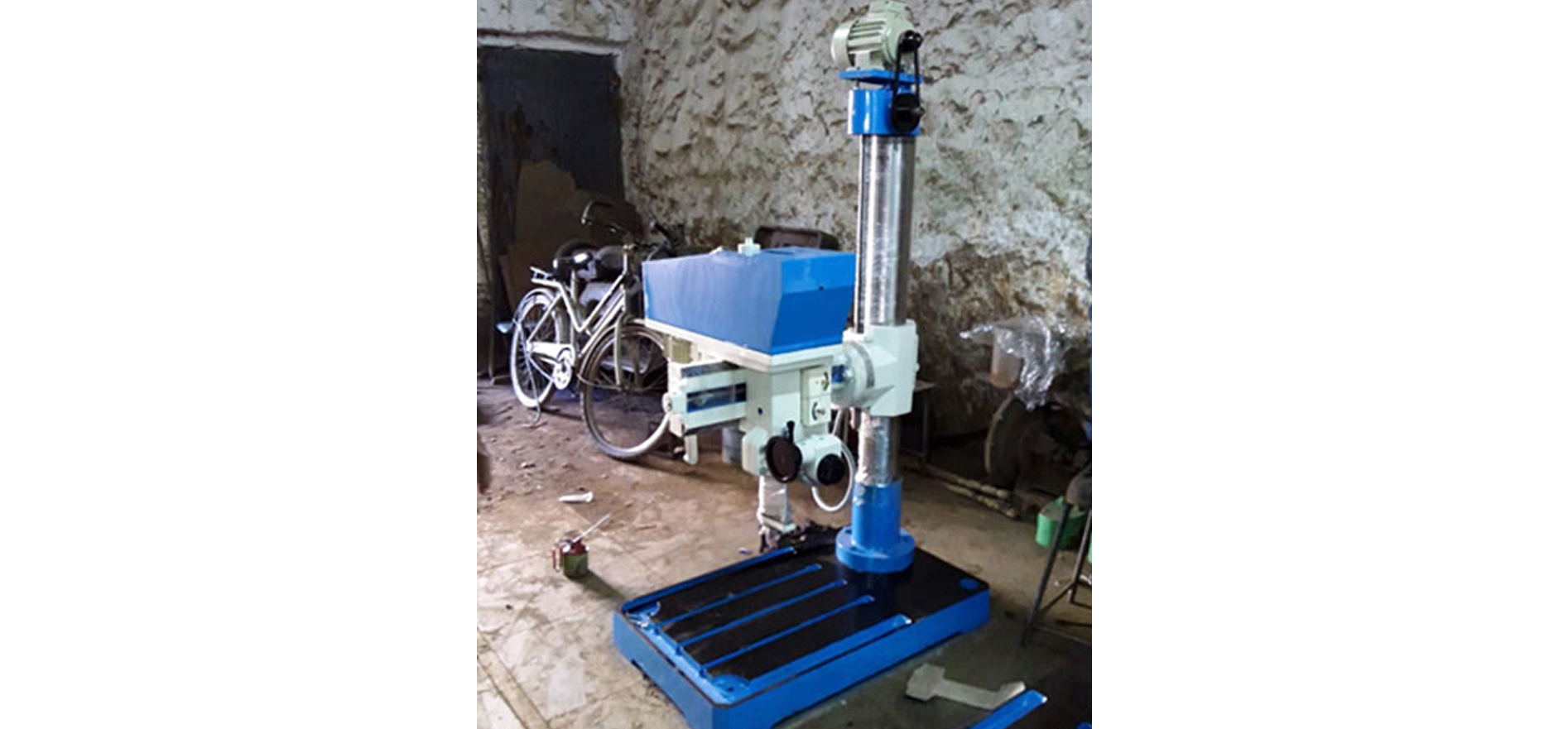

| SPECIFICATIONS |
CMW/25MM |
| Drilling capacity in mild steel |
25 mm |
| Dia of column |
127 mm |
| Dia of Ram |
72 mm |
| Machine area of Base |
600 x 1020 mm |
| Spindle Bore |
M - T - 3mm |
| Spindle Travel |
214 mm |
| Max. Dist. Spindle Nose Of Base |
642 mm |
| Max. spindle center to Column |
670 mm |
| Vertical Adjustment Of Arm |
600 mm |
| Size of Box Table |
250 x 200 x 200mm |
| Overall height of Machine |
1550 mm |
| Floor space Occupied |
610 x 940 mm |
| No. of spindle speeds 8 |
- |
| (4 direct, 4 geared) |
Star (Lever) Worm |
| Spindle Feed By |
1 HP 1440 RPM |
| Drill Head Motor |
0.5 HP 1440 Rpm |
| Elevating Motor |
475 kgs. |
| Net Belt |
B - 41 |
| Lifting Vee Belt |
A - 21 |
